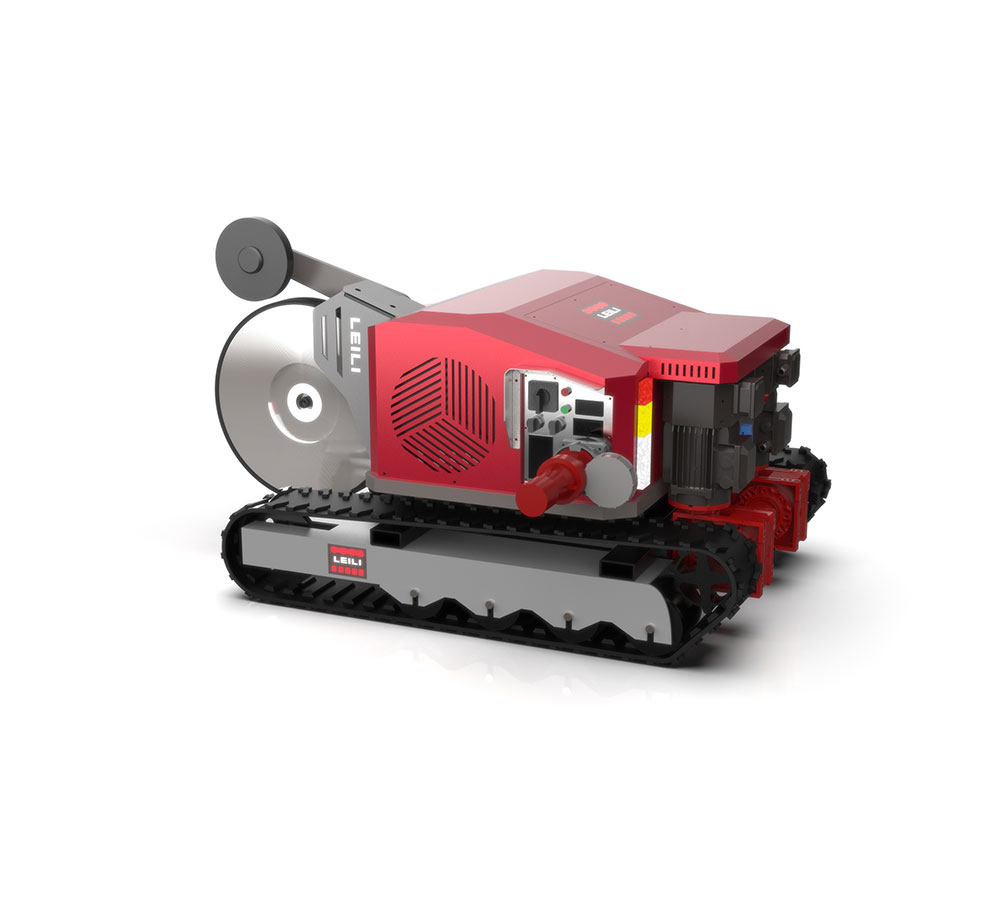

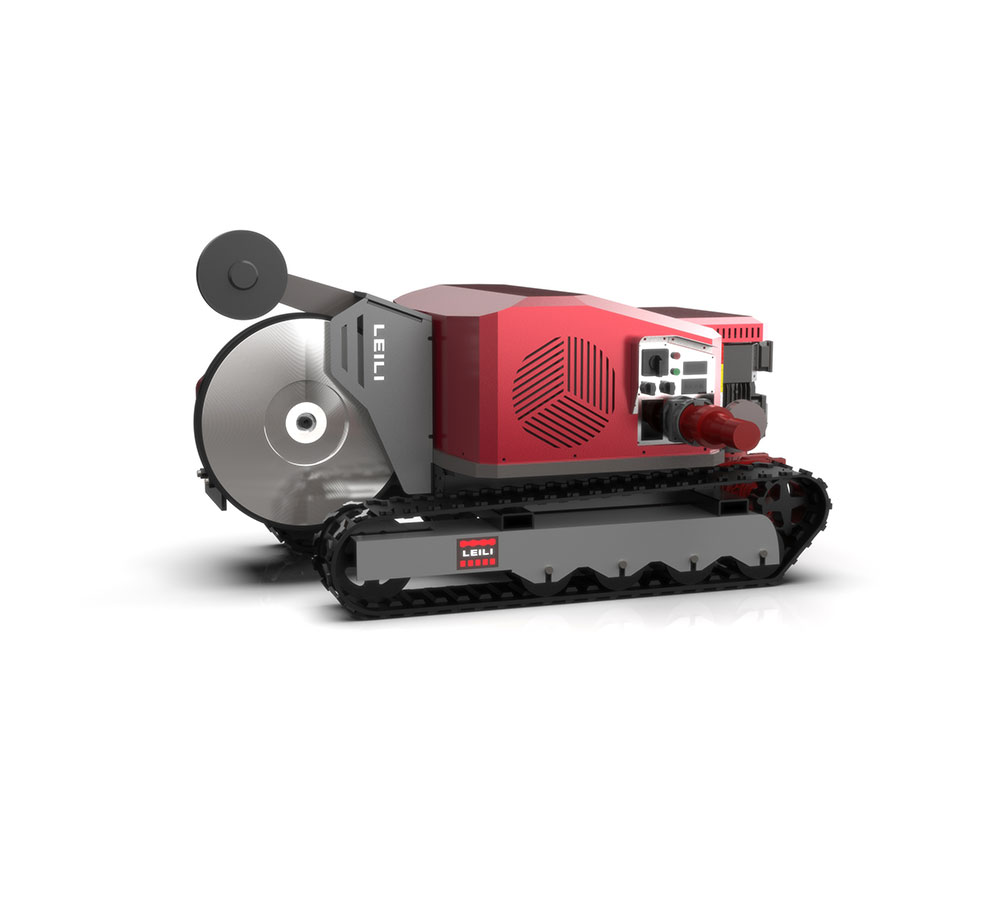

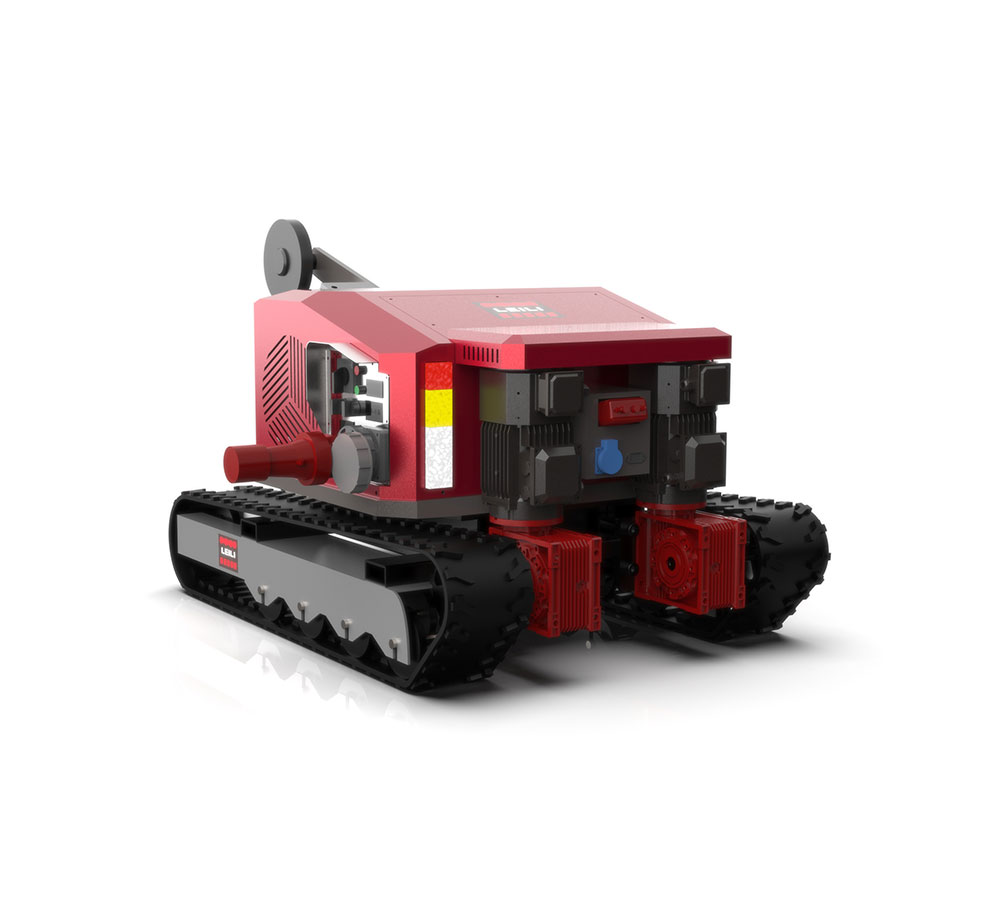

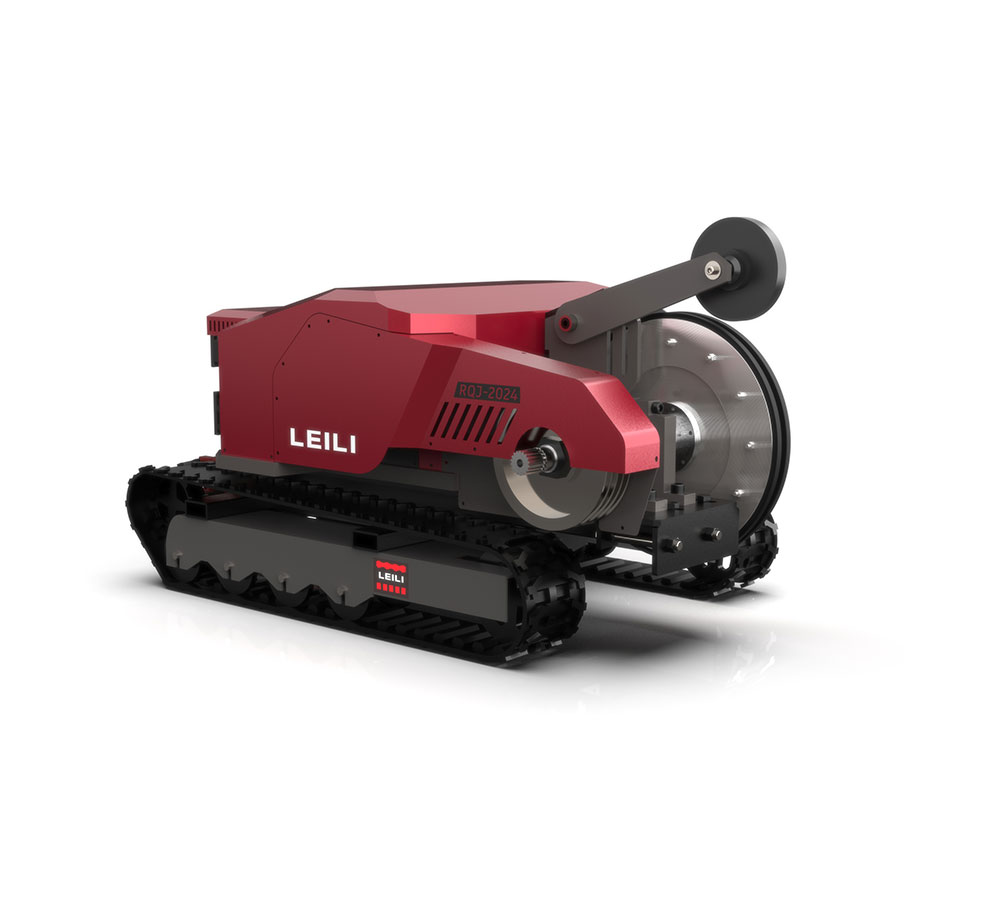

25 CRAWLER WIRE SAW

Share:

Technical Information

Dimensions1600×900×800
Total Weight (Kg)600
Gearbox Speed Ratio1:100
Drive Typedual inverter motor
Drive Motor Power (KW)1. 1×2
Travel Speed (m/min)0-18
Operating Voltage (V)380
Main Motor Rated Current (A)50
Main Motor Power (KW)25
Total Power (KW)28
Mobility Typecrawler track
Crawler Specification (mm)180×60×47
Maximum Traction Force (Kg)200
Applicable Working Conditionswire saw cutting
Cooling Methodwater spray cooling
Main Wheel Diameter (mm)500
Transmission Typebelt
Control Methodremote control
Control Distance (m)50


Features:

Custom High-Power Motor: Equipped with a customized high-power motor for superior performance.

Automatic Walking Control: Features an automatic walking control device for easy operation and maneuverability.

Durable Construction: Made with thickened steel plates and spray-plastic coating, ensuring corrosion resistance and long service life.

Applications: Ideal for outdoor environments such as bridge construction and demolition sites.
