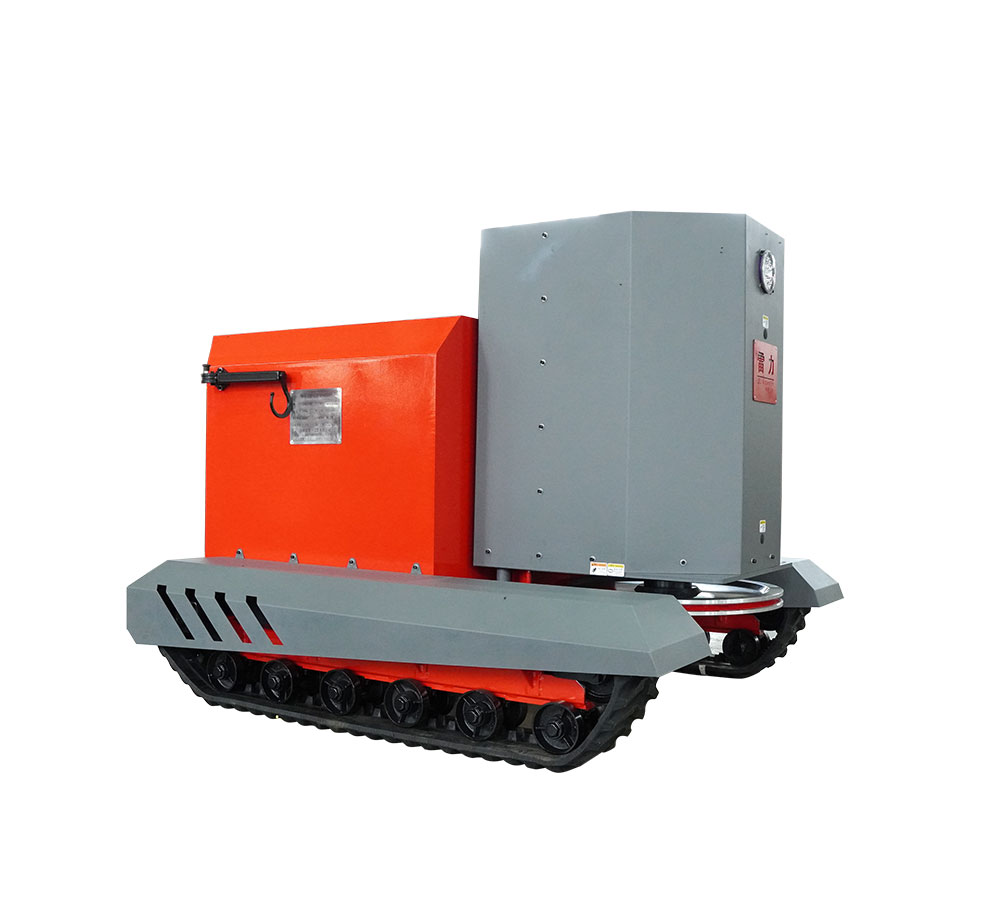

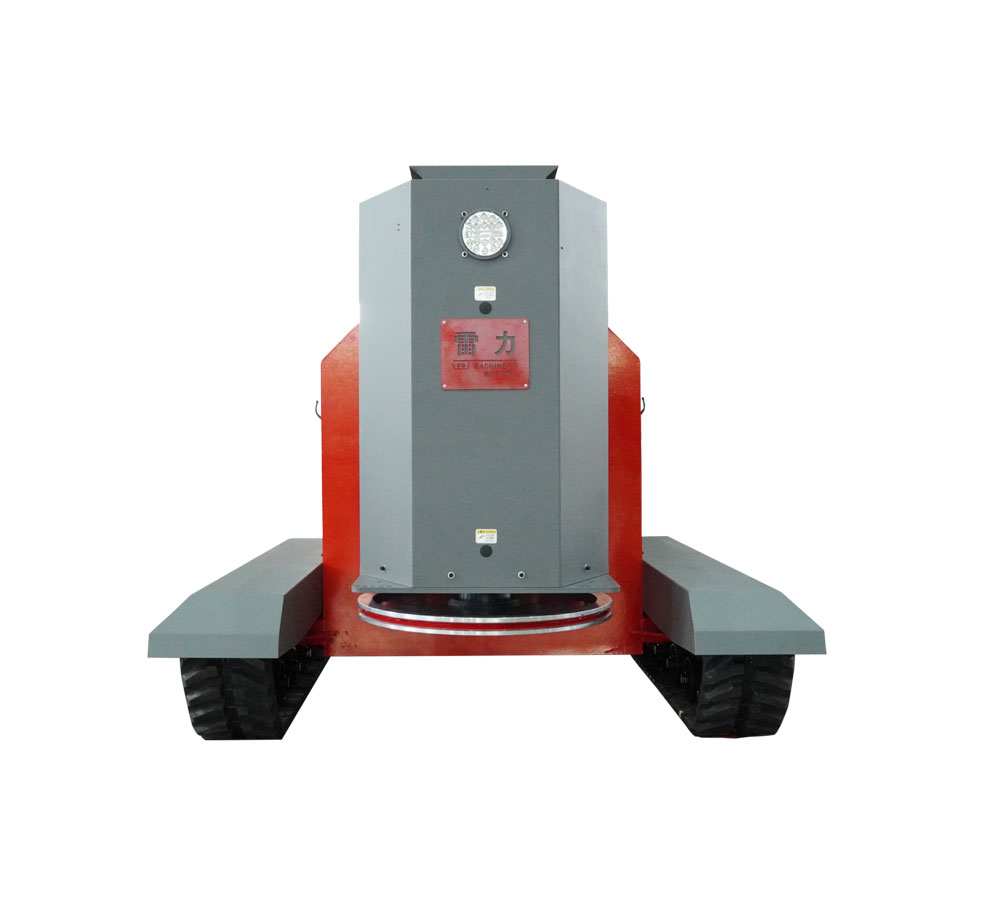

crawler type mine wire sawing machine

Share:
Technical Information


Rated VoltageAC380V±10%-50Hz
Rated Current168A
Total Power95Kw
Cable3 live wires + 1 ground wire, 50mm² flexible copper cable
Cutting Efficiency3-25 m²/h
Wire Speed0-36 m/s
Main Wheel Diameter800mm
Guide Wheel Diameter380mm
Travel Speed0-70m/h
Rotation Angle360°
Maximum Traction34000N
Working Temperature-10-40℃
Rubber Liner42×8mm
Track280×72×58
Dimensions/mm2300×1950×1500
Net  Weight3.2T


Features

*High-efficiency Power System:Equipped with a high-power motor that delivers strong performance, ensuring efficient cutting.

*Flexible Mobility:Crawler design adapts to complex terrains, facilitating movement in harsh environments like mines, making it suitable for rugged and uneven work sites.

*Multiple Protections:** Features overload protection, overheating protection, and other safety mechanisms to ensure operational safety.

*Applications:

*Mining:Suitable for extracting marble, granite, and other stone materials.

*Construction Engineering:Used for cutting and demolishing large concrete structures.
